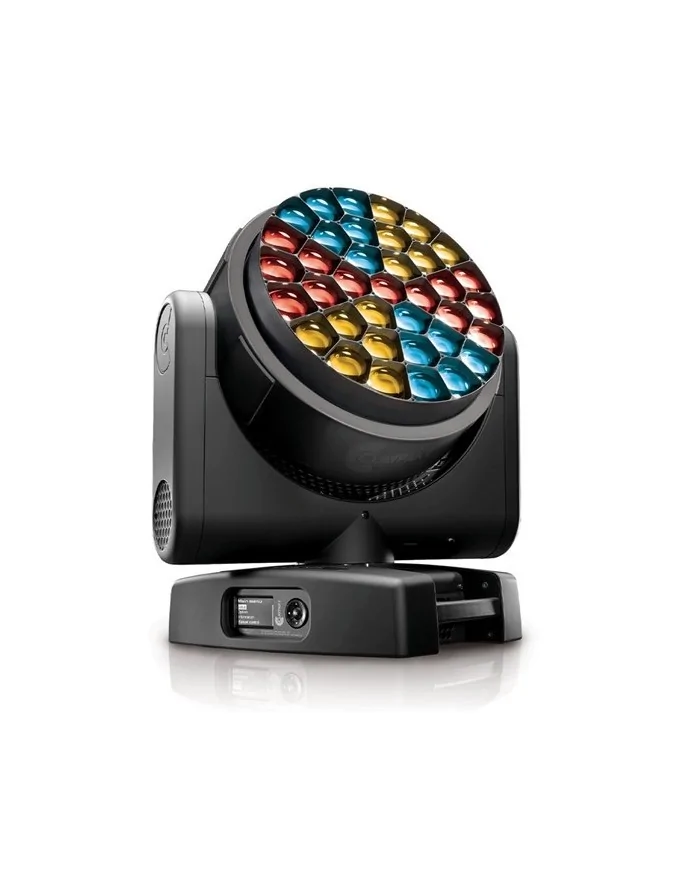

CLAY PAKY - HY B-EYE K25 TEATRO

5 1

Testa mobile Wash 37x40W RGBW LED

  • 3 modalità di funzionamento: Wash, Beam, Effects, zoom lineare 4°-60°, CTC 2500-8000K
  • B-EYE un prodotto versatile, che è contemporaneamente LED Wash dalle grandi performance, perfetto Beam light e proiettore di effetti grafici spettacolari, pluripremiato e copiato da innumerevoli produttori negli anni.

SKU: N/A
Descrizione

HYper Power of Evolution: il nuovo punto di riferimento LEDwash


Il B-EYE ha rivoluzionato il modo in cui pensiamo all'illuminazione degli show a LED. La sua innovativa unità ottica migliora l'uniformità e l'efficienza dell'emissione luminosa. La lente frontale rotante e la possibilità di controllare individualmente ogni singolo LED hanno prodotto spettacolari proiezioni caleidoscopiche e affascinanti effetti eye candy. Un motore di effetti sofisticato ha reso più facile l'impiego degli effetti, che altrimenti sarebbero complessi da programmare. Queste innovazioni tecnologiche rendono il B-EYE un prodotto versatile: è una lampada wash a LED ad alte prestazioni, una fascio di luce concentrata perfetta e uno spettacolare proiettore per effetti visivi, tutto in uno. Ha vinto diversi premi ed è stato copiato da innumerevoli produttori nel corso degli anni.
Oggi Claypaky offre HY B-EYE, che è DUE VOLTE PIÙ POTENTE e brillante di B-EYE. Offre anche più VERSATILITÀ e più INTERATTIVITÀ con i server multimediali (protocollo Kling-Net incluso), è molto SILENZIOSO, pur presentando  dimensioni simili e le stesse avanzatissime modalità di controllo del B-EYE.
HY B-EYE K25 TEATRO è una versione speciale di HY B-EYE K25, progettato per gli ambienti che necessitano la massima silenziosità di funzionamento, senza sacrificare la brillantezza dei colori.



  • Sorgente luminosa: RGBW LED Osram OSTAR - Stage II LE RTDUW S2WN (6000 K)
  • Potenza nominale dei LED: 40W
  • Numero di LED: 37
  • Tre modalità di funzionamento: Wash, Beam, Effects
  • Zoom lineare 4°-60°
  • Lente Frontale a rotazione bidirezionale, completamente riprogettata
  • Retraibilità automatica dello Zoom allo spegnimento del proiettore
  • Controllo individuale di ogni LED in tutti i suoi parametri luminosi
  • Effetto framing digitale su Wash e Beam
  • Maschera frontale invisibile, effetto “eye candy”
  • Ammorbidimento progressivo del bordo del fascio (in modalità Wash)
  • Art-Net / RDM
  • Protocollo Kling-Net incorporato
  • Dimmer elettronico lineare 0-100%
  • Strobo: 1-25 flash/sec
  • Canale dedicato per il controllo della temperatura colore
  • CTC 2500-8000K con emulazione della luce bianca
  • Regolazione automatica miscelazione RGBW per simulare sorgenti con una determinata temperatura colore
  • Emulazione di luce alogena
ALIMENTAZIONI DISPONIBILI

100-240V 50/60Hz

POTENZA ASSORBITA

1250 VA at 230Vac 50Hz

SORGENTE LUMINOSA

37 RGBW LEDs driven at 40 Watt
- Type: OSRAM OSTAR - Stage II LE RTDUW S2WN
- Color Temperature: 6,000 K
- Life: 50,000 hrs

OTTICA

4°-60° Electronic Zoom Range

SEZIONE EFFETTI

Three operating modes: wash, beam, FX (Kaleido effects)
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500-8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec

CONTROLLO E PROGRAMMAZIONE

22/36/111/148 DMX channels
Basic Engine (Standard and Shape Mode)
Pixel Engine (RGB and RGBW Mode)
DMX protocol signal: USITT DMX 512
Art-Net / RDM
Arkaos Kling-Net protocol already included in the firmware
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input

CORPO

Aluminium structure with die-cast plastic cover
Two side handles for transportation
PAN and TILT lock for transport and maintenance

CORPO MOBILE

Movement by means of two stepper motors, controlled by microprocessor
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
Travel:
- PAN = 540°
- TILT = 210°

ELETTRONICA

Long-life auto-charging buffer battery
Preset color and graphic effect macros
Function reset controllable from a central control unit
Menu-driven internal self-test function
Ethernet ready with RJ45 socket
Display: backlit black-and-white graphic LCD display
Electronic check-up of every single parameter with error alarm
DMX level monitoring on each channel
Automatic internal data transmission error diagnostics
Firmware upgrade even when the unit is not connected to the power supply
Firmware transfer from one light to another

DISPOSITIVI DI SICUREZZA

Automatic power safety derating in case of overheat of the LED board
Forced ventilation

POSIZIONE DI LAVORO

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

MARCATURA CE

In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)

ETL

This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573, UL 8750 and CSA C22.2 No. 166 standards.

PESO

27,5 Kg

HY B-EYE K25
